High Performance RJ45 Vertical Connector Compliant With IEEE 802.3 Standard

Name: High Performance RJ45 Vertical Connector Compliant With IEEE 8023 Standard
Brand: B-TOP
Price: 1 USD

China High Performance RJ45 Vertical Connector Compliant With IEEE 802.3 Standard wholesale

Brand Name : B-TOP

Model Number : B50(512-05)F4-94-A012-B52

Place of Origin : Dongguan

MOQ : Negotiable

Supply Ability : 1000 pcs/day

Delivery Time : 10 work days

Payment Terms : T/T

Plastic : PBT

EMI Finger : None

LED : None

Port : 1x1

Gender : Female

Usage : Network Equipment

Price : Negotiable

Contact Now

Detailed Product Description:

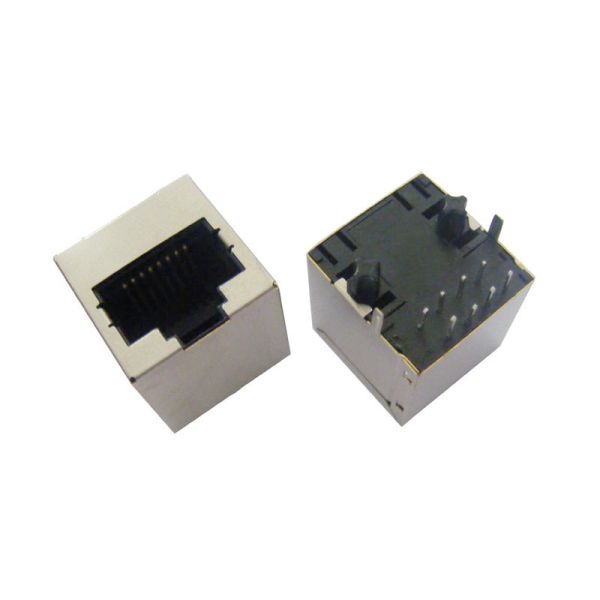

180 Degree 10/100Base-T Female RJ45 Connector with Transformer

Main use:

Network Equipment: Modem, Hub, Switch, Router, Gateway, Firewall, Repeater, Bridge...

Electrical Specifications at 25℃

Insertion Loss dB max: 1-100MHz , -1.0

Return Loss dB min:

1-30MHz , -18

30-60MHz , -16

60-80MHz , -12

Crosstalk(dB TYP):

1. 1-30MHz , -40

2. 30-60MHz , -35

3. 60-80MHz , -30

Common Mode Rejection (dB TYP)

1-50MHz : -30

50-150MHz: -20

Hipot(Vrms):1500

More Vertical RJ45 Jacks for your choice:

Part Number	Speed	Schematic	PoE	Gold Plating
B50(511-02)F4-42-A213-B52	100M	F4-42		6u"
B50(511-09)F4-42-A213-B52	100M	F4-42		6u"
B50(511-10)F4-94-A213-B52	100M	F4-94		6u"
B50(511-11)F4-94-A113-B52	100M	F4-94		6u"
B50(511-12)F4-03A-A113-B52	100M	F4-03A		6u"
B50(511-15)F4-03A-A213-B52	100M	F4-03A		6u"
B50(511-16)F4-03A-A212-B52	100M	F4-03A		6u"
B50(511-18)F4-03A-A113-B52	100M	F4-03A		6u"
B50(511-21)PF6-96-A313-B52	100M	PF6-96	PoE	6u"
B50(511-22)F4-03A-A113-B52	100M	F4-03A		6u"
B50(511-23)F4-94-A213-B52	100M	F4-94		6u"
B50(511-28)F4-264-A213-B52	100M	F4-264		6u"
B50(511-30)F4-168-A113-B52	100M	F4-168		6u"
B50(511-32)PF6-96-A213-B52	100M	PF6-96	PoE	6u"
B50(511-33)F4-42A-A113-B52	100M	F4-42A		6u"
B50(512-05)F4-94-A012-B52	100M	F4-94		6u"
B50(512-09)F4-03A-A013-B52	100M	F4-03A		6u"
B50(512-10)F4-03A-A013-B52	100M	F4-03A		6u"
B50(512-12)FP4-252-A013-B52	100M	FP4-252	PoE	6u"
B50(512-18)PF4-196A-A013-B92	100M	PF4-196A	PoE	6u"
B50(512-21)F4-03A-A013-B22	100M	F4-03A		6u"
B50(512-22)F5-56-A013-B52	100M	F5-56		6u"
B50(512-23)F4-42A-A013-B52	100M	F4-42A		6u"
B50(512-27)F4-94-A013-B52	100M	F4-94		6u"
B50(513-01)F4-94-A003-B52	100M	F4-94		6u"
B50(650-07)F4-94-A112-B12	100M	F4-94		6u"
B50(650-08)F4-94-A013-B12	100M	F4-94		6u"
B50(650-09)F4-94-A213-B12	100M	F4-94		6u"
B50(650-11)FP4-178-A112-B12	100M	FP4-178	PoE	6u"
B50(650-19)G8-42-A215-B12T	Gigabit	G8-42		30u"
B50(650-21)G8-42-A013-B12	Gigabit	G8-42		6u"
B50(650-27)PF4-198-A612-B12	100M	PF4-198	PoE	6u"
B50(650-29)G8-81-A113-B12	Gigabit	G8-81		6u"
B50(650-30)G8-62-A013-B12	Gigabit	G8-62		6u"
B50(650-32)G8-40-A013-B12	Gigabit	G8-40		6u"
B50(650-33)G8-40-A313-B12	Gigabit	G8-40		6u"
B50(650-35)G8-40-A113-B12	Gigabit	G8-40		6u"
B50(650-42)PF4-207-A113-B12	100M	PF4-207	PoE	6u"
B50(650-45)G8-42-A113-B12	Gigabit	G8-42		6u"
B50(650-46)G8-40-A613-B12	Gigabit	G8-40		6u"
B50(650-48)G8-86-A013-B12	Gigabit	G8-86		6u"
B50(650-49)G8-42-A115-B12T	Gigabit	G8-42		30u"
B50(650-50)G8-62-A216-B12	Gigabit	G8-62		50u"
B50(650-51)F4-94-A215-B12	100M	F4-94		30u"
B50(650-53)G8-140A-A113-B12	Gigabit	G8-140A	PoE	6u"
B50(650-55)G8-62-A616-B12	Gigabit	G8-62		50u"
B50(650-56)G8-62-A616-B12	Gigabit	G8-62		50u"
B50(650-58)G8-62-A214-B12	Gigabit	G8-62		15u"
B50(650-59)G8-62-A113-B12	Gigabit	G8-62		6u"
B50(650-61)PF4-151-A113-B12	100M	PF4-151	PoE	6u"
B50(650-62)G8-62-A016-B12	Gigabit	G8-62		50u"
B50(650-63)PF4-207-A113-B12	100M	PF4-207	PoE	6u"
B50(650-65)G8-158-A013-B12	Gigabit	G8-158		6u"
B50(650-66)G8-62-A613-B12	Gigabit	G8-62		6u"
B50(650-81)G8-40-A213-B12	Gigabit	G8-40		6u"
B50(650-82)G8-135-A213-B12	Gigabit	G8-135		6u"
B50(650-92)F4-94-A114-B12	100M	F4-94		15u"
B50(650-83)G8-158-A213-B12	Gigabit	G8-158		6u"
B50(650-84)G8-62-A613-B12	Gigabit	G8-62		6u"
B50(650-88)G8-38A-A613-B12	Gigabit	G8-38A		6u"
B50(650-89)G8-120A-A213-B12	Gigabit	G8-120A		6u"
B50(650-95)F4-94A-A215-B12	100M	F4-94A		30u"
B50(650-97)F4-94-A114-B92	100M	F4-94		15u"
B50(650-98)F4-94-A313-B12	100M	F4-94		6u"
B50(650-100)G8-201-A613-B12	Gigabit	G8-201		6u"
B50(650-102)G8-30-A213-B12	Gigabit	G8-30		6u"
B50(650-103)FT4-180-A215-B12	100M	FT4-180	PoE	30u"
B50(650-104)G8-091-A113-B52	Gigabit	G8-091		6u"
B50(650-106)G8-200-A113-B52	Gigabit	G8-200		6u"
B50(650-107)G8-200-A613-B52	Gigabit	G8-200		6u"
B50(660-01)F4-57-A013-B12	100M	F4-57		6u"
B50(660-03)F4-94-A013-B12	100M	F4-94		6u"
B50(660-06)F6-246-A014-B52	100M	F6-246		15u"
B50(660-07)F4-94-A016-B92	100M	F4-94		50u"
B50(660-08)F4-259-A013-B92	100M	F4-259		6u"
B50(660-09)PF4-147-A013-B12	100M	PF4-147	PoE	6u"
B50(660-11)F4-94-A013-B92	100M	F4-94		6u"

Spectifications:

Electrical		Mechanical
Current rating:	1 - 1.5A	Insertion force:	2 contacts---350g
Voltage rating:	120 - 150V AC		4 contacts---500g
Insulation resistance:	500MΩ Min		6 contacts---750g
Withstand voltage:	AC 1500Vrms 50Hz or 60Hz 1 Min		8 contacts---900g
Contact resistance:	20mΩ Max		10 contacts---1050g
PoE rating:	15W, 350mA, 84V (For PoE product only)	Retention strength:	7.7Kg between jack and plug
		Durability:	750 mating cycles mini
Material
Housing:	1) glass filled PA66(ul 94v-0)
	2) glass filled PA46(ul 94v-0)
	3) glass filled PBT(ul 94v-0)
Spring wire:	1) 0.45mm dia phosphor bronze gold plating over nickel
	2) 0.35mm thickness phosphor bronze alloy
	selective gold plating over nickel
Shielding:	0.2mm thickness copper alloy with tin plated
Gold plating:	3μ″,6μ″,15μ″,30μ″,50μ″
Working temperature:	-20℃-70℃, -40℃-85℃
Relative humidity:	70%±10% RH
